Power. Strength. Speed.

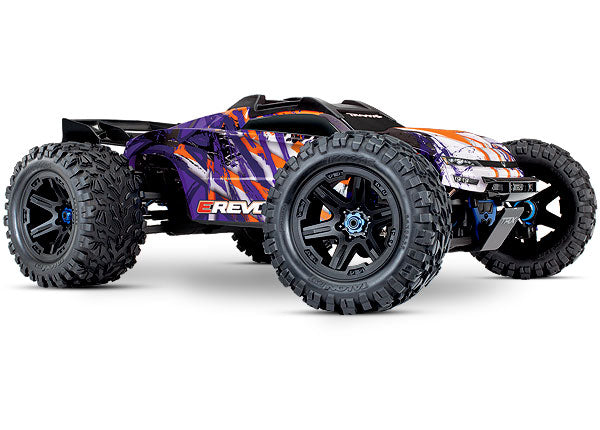

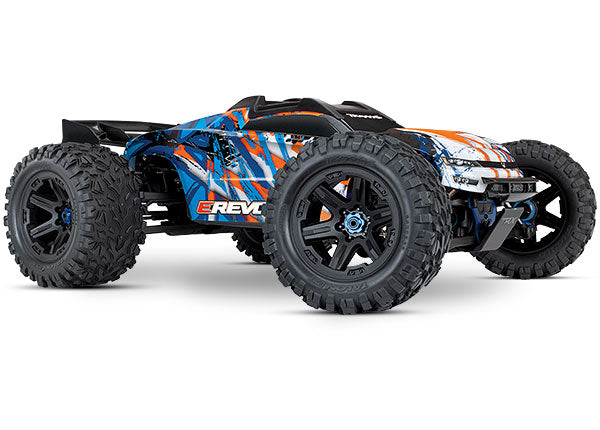

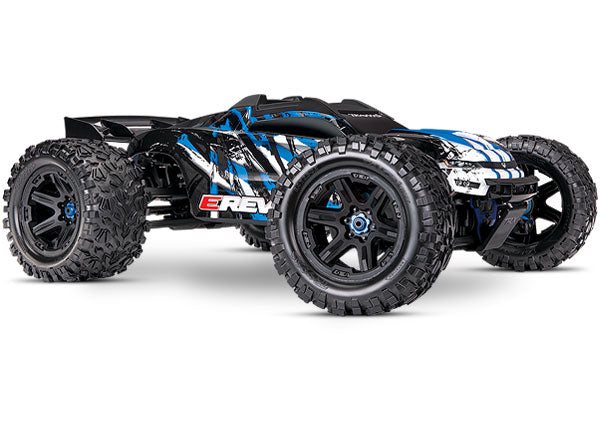

There is no other monster truck like E-Revo. It embodies the highest level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation, and unheard of speed that reset every benchmark for racing monster truck performance. Now there is a new generation of E-Revo. This new E-Revo retains all the benefits of its original ground-breaking, award-winning design, but fortifies them with brute strength and an intense, take-no-prisoners attitude to deliver what is simply the ultimate 6s monster. Get ready for a whole new level of power, strength, and speed.
With just a handful of parts carrying over from the previous generation, the next generation E-Revo packs dozens of upgrades to make it the ultimate go-to vehicle for insane stunts and backyard bashing.
- 70+ MPH Speeds
-
New Tires & Wheels
- New Suspension Arms
- New Differentials
- Heavy-Duty 5mm Suspension Links
- Stronger Low CG Chassis
- MAXX-Spec Driveline
- Self Righting
- 6S Power
Specifications:
-
Length: 23.05 inches (585mm)
-
Width: 18.32 inches (465mm)
-
Ground Clearance: 2.9 inches (73mm)
-
Weight: 11.2lb (5.08kg)
-
Height: 8.7 inches (221mm)
-
Wheelbase: 14.94 inches (380mm)
-
Front Shock Length: 3.42 inches (87mm)
-
Rear Shock Length: 3.42 inches (87mm)
-
Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
-
Wheels: 3.8 inches (97mm)
-
Speed Control: Velineon® VXL-6s
-
Motor (electric): 2200kV
-
Transmission: Single speed
-
Gear Pitch: 1.0 Metric pitch (Mod-1)
-
Final Drive Ratio: 20.49:1
-
Differential Type: Sealed, 4-gear
-
Center Differential Type: Sealed, 4-gear (20M weight oil)
-
Chassis Structure / Material: Composite tub
-
Brake Type: Electronic
-
Drive System: Shaft driven 4WD
-
Steering: Bellcrank
-
Radio System: TQi™ 2-channel transmitter with TRA6533 TSM receiver
-
Servo: Dual 2075
-
Top Speed (optional gearing): 70+ mph
-
Skill Level: 3
-
Battery Compartment: 156mm x 50mm x 29mm
Includes:
- E-Revo with VXL-6s ESC and 2200kV motor
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
Needed to Complete:
-
(2) 2S LiPo or 3S LiPo Battery w/Traxxas iD Connector
- (1) Compatible Battery Charger
- (4) "AA" Batteries (for transmitter)
