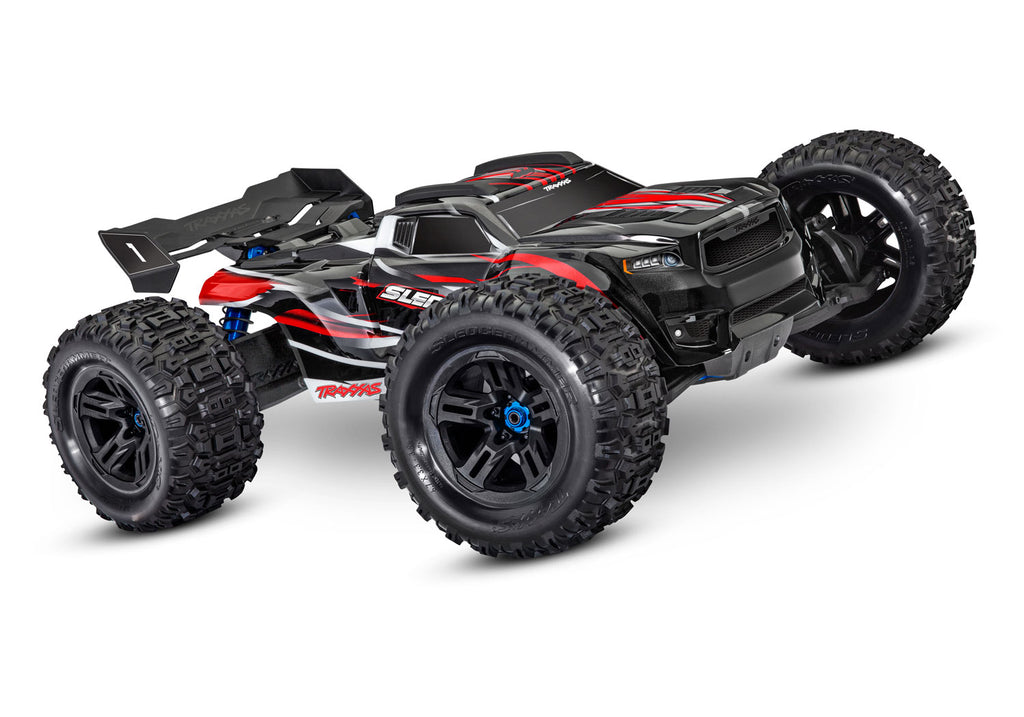

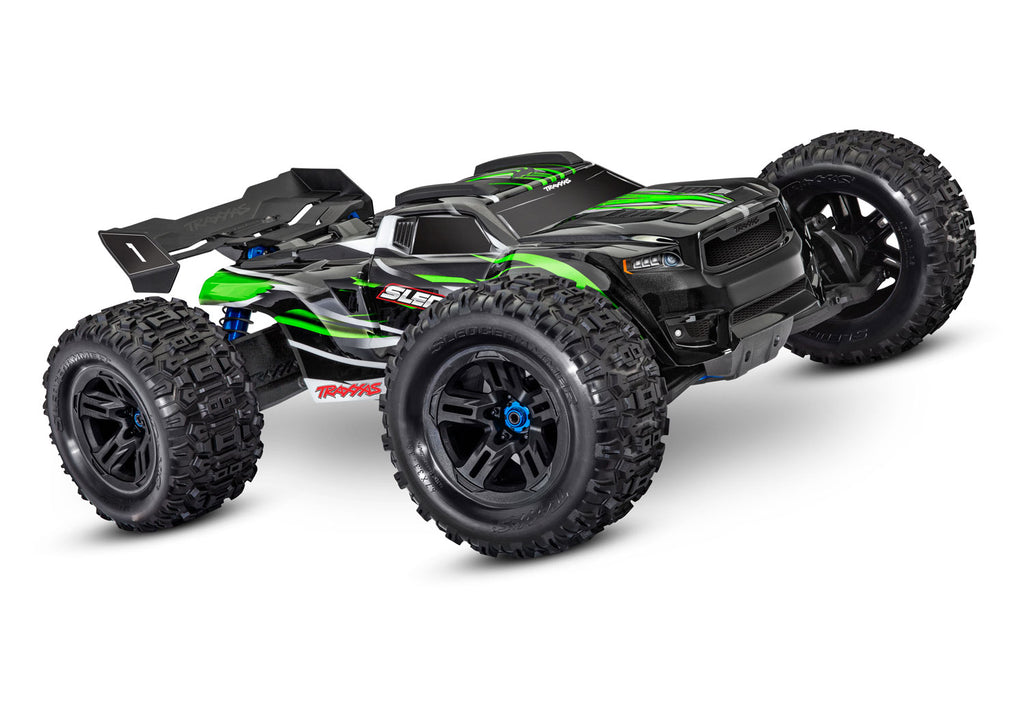

Engineered. Tested. Built to a higher standard. The all-new Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.
Features:
- 1/8th Scale basher designed specifically for 6S power
- 20% larger and 75% thicker drive gears
- Triangulated chassis structure for superior chassis strength
- Remove and replace the body in just seconds with exclusive clipless body
- Includes a high-performance metal gear servo that produces over 347oz-in of torque
- 6S power system for brutal power
- Durable Sledgehammer tires are used for great handling and traction
Specifications:
- Truck:
-
Length (including wing): 23.78 inches (604mm)
-
Front Track: 18.10 inches (459mm)
-
Rear Track: 18.10 inches (459mm)
-
Ground Clearance: 1.95 inches (50mm)
-
Weight (no battery): 12.74 pounds (5.77kgs)
-
Height (overall): 8.43 inches (214mm)
-
Wheelbase: 15.10 inches (384mm)
-
Shock Length (front): 5.12 inches (128mm)
-
Shock Length (rear): 5.67 inches (144mm)
-
Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
-
Wheel Diameter: 3.8 inches (97mm)
-
Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
-
Differential Type: Sealed, hardened steel bevel, limited slip
- ESC:
-
Model: Velineon VXL-6s
-
Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
-
BEC Voltage: 6.0 V
-
BEC Current Continuous: 10 A
-
BEC Current Peak: 20 A
-
Reverse Delay: Yes, with lockout
- Motor:
-
Type: 2000 kV sensorless brushless
-
Connector Type: Traxxas 6.5mm bullet connectors
Includes:
- (1) Traxxas RTR Sledge Monster Truck
- (1) TQi 2.4GHz radio system
- (1) Jumper plug (for 4s battery use)
- (1) Quick Start Guide
- High quality maintenance tools
Needed to Complete:
-
4S: (1) 4S 6700mAh LiPo Battery with Traxxas iD Connector or (2) 2S 7600mAh LiPo Batteries with Traxxas iD Connectors
-
6S: (2) 3S 5000mAh LiPo Batteries with Traxxas iD Connector
- (1) Compatible LiPo Balance Charger
- (4) AA Batteries
