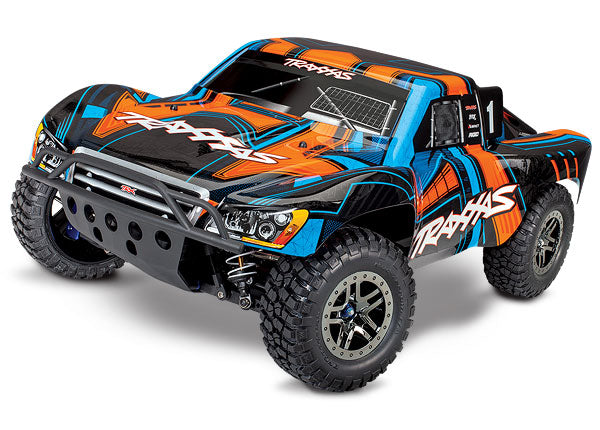

Experience the pinnacle of short course truck performance with the Slash® 4X4 Ultimate. Fully loaded out of the box, the Slash Ultimate features brutal Velineon® brushless power and Traxxas Stability Management® (TSM) with a high-speed metal gear servo. Carve corners like a pro thanks to the low-CG chassis, installed sway bars, and ultra-smooth blue PTFE-coated aluminum GTR shocks. Slash 4X4 Ultimate packs a full complement of aluminum hop-up parts and performance accessories for added strength and show-stopping looks. Slash 4X4 Ultimate arrives fully assembled with factory-installed telemetry sensors and a Wireless Link equipped TQi™ 2.4GHz radio system. Simply add the battery of your choice (sold separately) and you’re ready for intense tire-scorching action.
Features:
- High-volume, blue PTFE-coated aluminum GTR shocks
- High-speed metal gear servo (#2075R)
- Upgraded Extreme-Duty driveshafts
- Heavy-duty suspension arms
- Traxxas Stability Management (TSM)
- Performance-optimized dark charcoal gray low-CG chassis
- TQi 2.4GHz high output radio system with Traxxas Link Wireless Module™
- Factory installed telemetry sensors
- Telemetry-ready 5-channel 2.4GHz micro receiver
- ProGraphix™ painted body
- Blue-anodized 6061-T6 aluminum C-hubs
- Blue-anodized 6061-T6 aluminum steering blocks
- Blue-anodized 6061-T6 aluminum rear hub carriers
- Blue-anodized 6061-T6 aluminum axle nuts
- Adjustable front and rear sway bars
- Included optional extra-stiff sway bar set
Specifications:
- Length: 22.36 Inches (568mm)
- Front Track: 11.65 Inches (296mm)
- Rear Track: 11.65 Inches (296mm)
- Center Ground Clearance: 1.85 Inches (47mm)
- Weight: 80.4oz (2.28kg)
- Height (overall): 7.60 Inches (193mm)
- Wheelbase: 12.75 Inches (324mm)
- Shocks: GTR threaded aluminum-body with titanium-nitride shafts
- Shock Length: GTR Long (front), XX Long (rear)
- Tires: 2.2/3.0", S1 compound, pre-glued with foam inserts
- Tire Diameter: 4.31 Inches (109.5mm) (front and rear)
- Wheels (front/rear): 2.2/3.0" Split-Spoke, Black Chrome
- Wheel Diameter: 2.2 Inches (56mm) Outer, 3.0 Inches (76mm) Inner
- Speed Control Type: VXL-3s™ Electronic Speed Control
- Motor (electric): Velineon® 3500 Brushless
- Overall Drive Ratio: 11.82 (stock, out-of-box)
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32
- Chassis Structure/Material: Molded tub / nylon composite
- Drive System: Shaft-driven, direct drive 4WD
- Steering: Dual-bellcrank with integrated servo saver
- Radio System: TQi 2.4 GHz radio system with Traxxas Stability Management®
- Body: ProGraphix® pre-painted
- Top Speed: 60+mph With optional gearing and 3S LiPo battery (items sold separately)
- Battery Tray Dimensions: 165mm x 49.5mm x 23mm, 25mm (Battery expansion kit available)
Required:
- Traxxas battery pack w/iD connector
- Traxxas iD charger
- (4) "AA" batteries (for transmitter)
