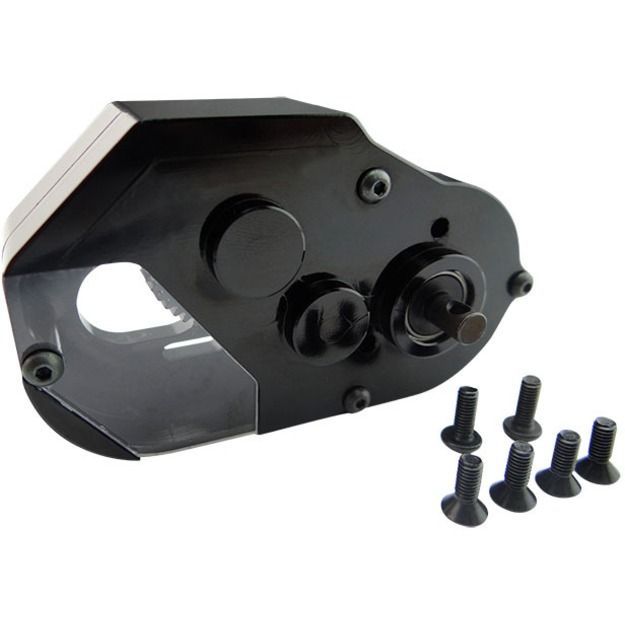

Low CG Transmission Gear Box AX10 SCX10
Low center of gravity transmission for the Axial AX10 and SCX10 vehicles
FEATURES:
- CNC machined 6061 aluminum case
- Hardened steel gears
- Full ball bearing
- High gear reduction
- 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
- Supports 9T to 30T 48 pitch pinion gears
- Optional dig unit available (Hot Racing SCP38L01)
YOU WILL RECEIVE:
- One (1) low CG transmission
- Four (4) M3x8mm flat head cap screw
- Two (2) M3x8mm button head cap screw
REQUIREMENTS:
- Trimming of the rear axle should be expected
- Due to the large array of vehicle variants, additional axle trimming may be required
- Recommended to use black grease gear lubricant on gear train
SPECIFICATIONS:
- length: ~78.8mm
- width: ~18.8mm
- height: ~47.8mm
COMMENTS:
- A 12T, 48P pinion will produce a 49.5:1 final drive ratio
- Optional dig unit available (Hot Racing SCP38L01)
- Replacement parts include: RSCP12SG (internal gear set), RSCP12CC (clear gear cover)
