Introduction
The SCX10™ has been the vehicle of choice for scale trail fun! For the past 8 years the SCX10™ has been the staple vehicle platform for scale trail enthusiasts around the world. Axial was one of the first companies to embrace R/C rock crawling and the first to mass produce a scale trail truck. Axial has been watching trends, tirelessly testing, and experimenting to create the next evolution of the SCX10™. The SCX10™ II is the culmination of many years of development, furthering aesthetic realism while maximizing trail performance.
Features
- Scale steel C-channel side rail chassis with adjustable body mount
- adjustable bumper mounts with swaybar mounting points
- mounting points for optional 2-speed and servo winch
- Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts
- UVJ style front driveshafts for increased steering angle
- full ball bearing drivetrain
- AX10 three gear transmission layout
- metal motor plate
- Dual pad slipper clutch design for added surface area
- 35 turn, brushed, water resistant motor with integrated cooling fan
- Tactic TTX300 3-channel SLT radio with TR325 Receiver
- programmable 3rd channel for operating two speed transmission winches or lights
- Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearing steering servo
- Axial AE-5 waterproof ESC, switchable between LiPo or NiMH operation with a jumper, male star plug lead
- 56T 32-pitch spur gear, and 15T 32-pitch Pinion Gear
- Easy access front mount battery tray
- AR44 Hi-Pinion Axle with hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one-piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously for less torque twist

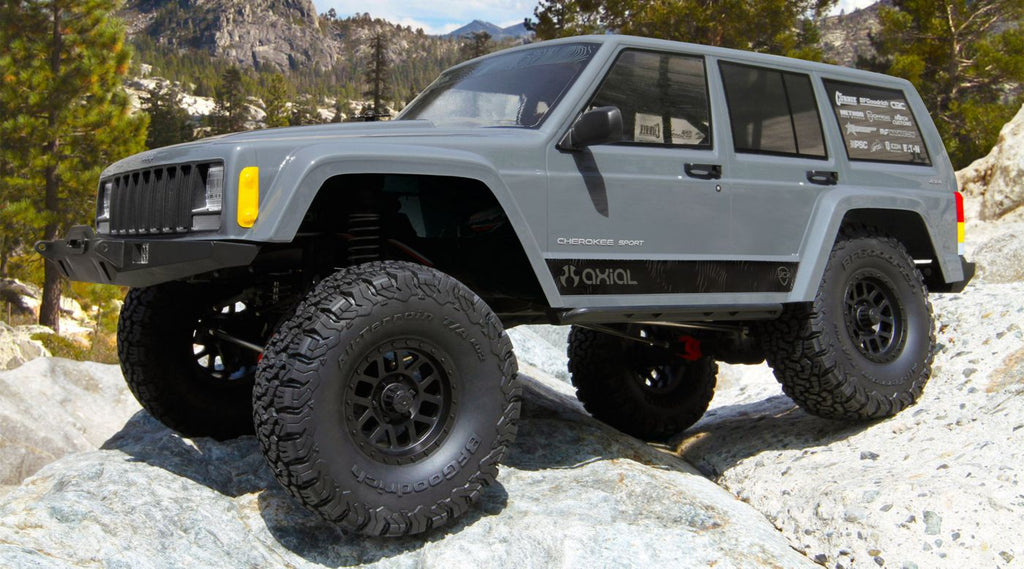

- Painted 2000 Jeep Cherokee body
- 1.9" Method wheels, composite plastic construction, black in color
- BF Goodrich A/T KO2, S30 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide tires
- Coil over, oil filled shocks with steel springs, white in color
- Optimized suspension geometry with integrated mounts, upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high-power applications
- Proper CMS geometry using 3-link setup with panhard bar, with up to 45° steering angle
- Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)
- (1) RTR SCX10 II 4WD All Terrain Jeep
- (1) Tactic TTX300 3-channel SLT radio
- (1) Tactic TSX45 metal gear, water resistant steering Servo
- (1) Axial AE-5 waterproof ESC
- (1) 35 turn, brushed, water resistant motor with integrated cooling fan
Needed to Complete
- (1) 6-cell NiMH or 2-3S LiPo with T-plug
- (1) Compatible Charger
- (4) AA Batteries for Transmitter
